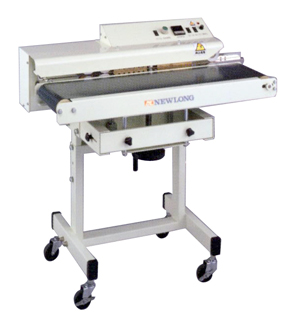

AUTOMATIC HEAT SEALER - BD+7

HORIZONTAL STANDARD TYPE

  • Speed controller and digital temperature control are equipped.
  • Gusset roller is attached as standard.
  • Conveyor moves 60mm horizontally toward operator.

Horizontal Standard Band Sealer

SPECIFICATIONS

MACHINE DIMENSIONS 885x511x885 (mm)
WEIGHT 60kg
POWER REQUIRED AC220V 1000W
SEAL WIDTH Max. 8mm
BAG WIDTH BAND SEAL

Cost Effective and Potential Output

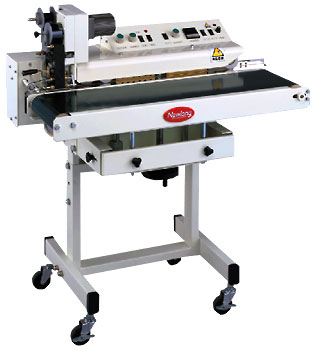

AUTOMATIC HEAT SEALER - BD+7P

  • Model HP-35 Hot Printer is equipped in the model.
  • Either one/two line printing is available by means of a change lever.
  • No adjustment required for this change-over.
  • Printing tape brake detector equipped as standard.

Horizontal Standard Band Sealer

SPECIFICATIONS

MACHINE DIMENSIONS 885x511x990 (mm)
WEIGHT 68kg
POWER REQUIRED AC220V 1200W
SEAL WIDTH Max. 8mm
BAG WIDTH BAND SEAL
Max. Printing Width 35mm

Cost Effective and Potential Output

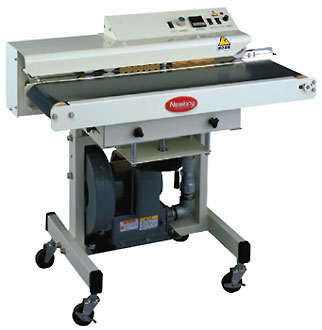

AUTOMATIC HEAT SEALER - BD+7S

HORIZONTAL STANDARD TYPE

  • Air evacuation device is equipped in the model.
  • Air evacuation device takes out the air trapped in bags.

Horizontal Standard Band Sealer

SPECIFICATIONS

MACHINE DIMENSIONS 885 x 511 x 885 (mm)
WEIGHT 86.3kg
POWER REQUIRED AC220V 1400W
SEAL WIDTH Max. 8mm
BAG WIDTH BAND SEAL

For Snacks and Assorted Food Products

AUTOMATIC HEAT SEALER - BD-III.F.V.

HORIZONTAL STANDARD TYPE

  • Meets intermediate production requirements for sealing poly-ethylene, vinyles, coated papers and many other heat sealable materials.

Horizontal Standard Band Sealer

SPECIFICATIONS

MACHINE DIMENSIONS 1700 x 560 x 1372 (mm)
WEIGHT 140kg
POWER REQUIRED AC120V/220V, 1300W
SEAL WIDTH Max. 8mm
BAG WIDTH BAND SEAL

For Snacks and Assorted Food Products

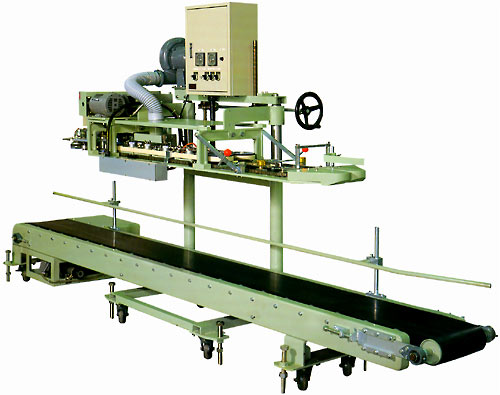

NEWLONG KS-16 For Paper Bag With and Without Inner PE Film

Heat Sealer For Heavy-Duty Paper Bag

  • Compact and Completely Sift-Proof Packaging System
  • One Lined Closure of Paper Bag
  • Simple Adjustment and High Performance
  • Easy Control of Heater Bar Temperature
  • High Level of Sealed and Stitched Closure

NEWLONG KS-23 For Paper Bag With Inner PE Film

  • Model HP-35 Hot Printer is equipped in the model.
  • Either one/two line printing is available by means of a change lever.
  • No adjustment required for this change-over.
  • Printing tape brake detector equipped as standard.

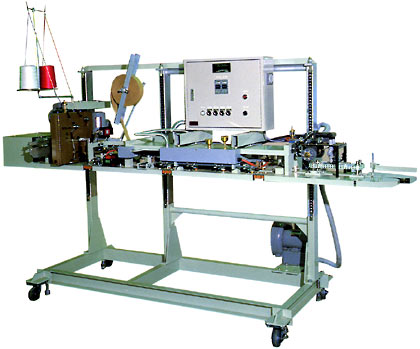

NEWLONG KS-184 For Milk-Powder or Foodstuff Packaging.

  • KS-184 is Superior to all KS Series.
  • KS-184 Comes With Heater Bars and Four Pairs Cooling Bars
  • Effective For Heavier Multiwall Bag
  • Dust Cleaner Gurantees a Hygenic Treatment For Food Products

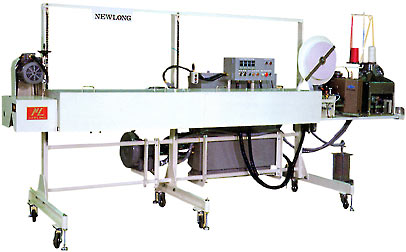

NEWLONG HS-22 For Various Types of Polyethylene Bags

Heat Sealer For Heavy-Duty Polyethylene Bags

  • Both PE Bags and Inner PR layer bags can be sealed owing to the band seal system employed.
  • Steel Band and Teflon Band System. The user can select either Steel or Teflon Band depending on the type of Bags and the Products.
  • The Teflon Band retains less heat, and is easily cooled. It products smooth seal surfaces, and is most suitable for PE Bags.
  • The Steel Band retains heat which makes it suitable for sealing PE Laminated Wooven Cloth Bags.
  • Water Cooled and Air Cooling Systems are Incorportated.

Dust Remover / Bag Top Trimmer Options.

  • Optional Dust Remover.

Bag Top Trimmer Options.

  • Optional Top Trimmer
