NEWLONG Model DN-2HS

Single Needle, Plain Feed, Flat Bed, Double Thread Chain Stitch Machine for seaming and hemming of light to heavy weight material such as multi-wall paper, PP/PE woven cloth, jute bags, etc. This model is used as a sewing head of paper bag sewing machine complete set, such as Model TN-2D, 6N, DSM-3, 7N, etc.

NEWLONG Model DN-2W

Two Needle, Plain Feed, Flat bed, Four Thread Chain Stitch Machine for seaming and hemming of light to heavy weight fabric such as PP/PE woven cloth or jute bags. This model is a variation of model DN-2HS, and effects a twin seam with two each of needles and loopers. Recommended when strong seam is required. Can be used as a single needle machine by simply removing one needle or the other.

NEWLONG Model DKN-3/DKN-3BP/DKN-3W

High Speed, Single Needle, Flat Bed, Double Thread Chain Stitch Machine for seaming and hemming of light to medium weight material. Most recommended for PP/PE woven cloth bags. Completely automatic, totally enclosed lubrication system. Model DKN-2BP is recommended for heavy seaming and hemming operations. Multi-wall paper bag sewing is available upto 3-ply by Model DKN-2BP. Easy conversion from DKN-2 to DKN-2BP by replacing some parts. Model DKN-2W is a variation of Model DKN-2, and recommended for twin seam (2 needle) bottom sewing of PP/PE woven cloth bags at high speed.

NEWLONG Model DR-3A

Single Needle , Plain Feed, Flat Bed, Double Thread Chain Stitch Machine for seaming and hemming openings of very heavy weight fabric such as jute or PP/PE woven cloth bags. Extra heavy duty machine for sewing very thick material with chain stitch. Single thread chain stitch is available by replacing some parts.

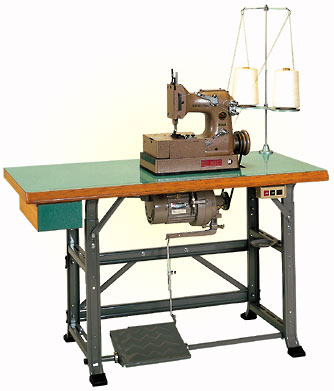

NEWLONG Model TSM (Table, Stand and Motor)

The Table, Stand & Motor can be used for all kind of NEWLONG Sewing Machine heads mentioned in this website.

Specifications

Table H40 x L1,200 x W545mm
Stand H680(675-715) x L860 x W490mm
Clutch
Motor
400W, 2P, single phase or 3 phase
2,840r.p.m. (50Hz)/3,400r.p.m. (60Hz)

** Note: when ordering, please specify voltage, cycles and phase.

Standard size for Mortor Pulley and V-belt

MODEL DN-2HS
DN-2W
DKN-1
DKN-1BP
DKN-2
DKN-2BP
DKN-2W
DR-3A
HR-2A
HR-4A
HR-4B
*HR-5F DD-5
50Hz Motor Pulley (Ømm) 95 90 100 105 85 45 70
V-belt M36 M31 M30 M41 M40 M57 M54
60Hz Mortor Pulley(Ømm) 80 75 85 90 75 40 60
V-belt M35 M30 M29 M40 M39 M56 M53
